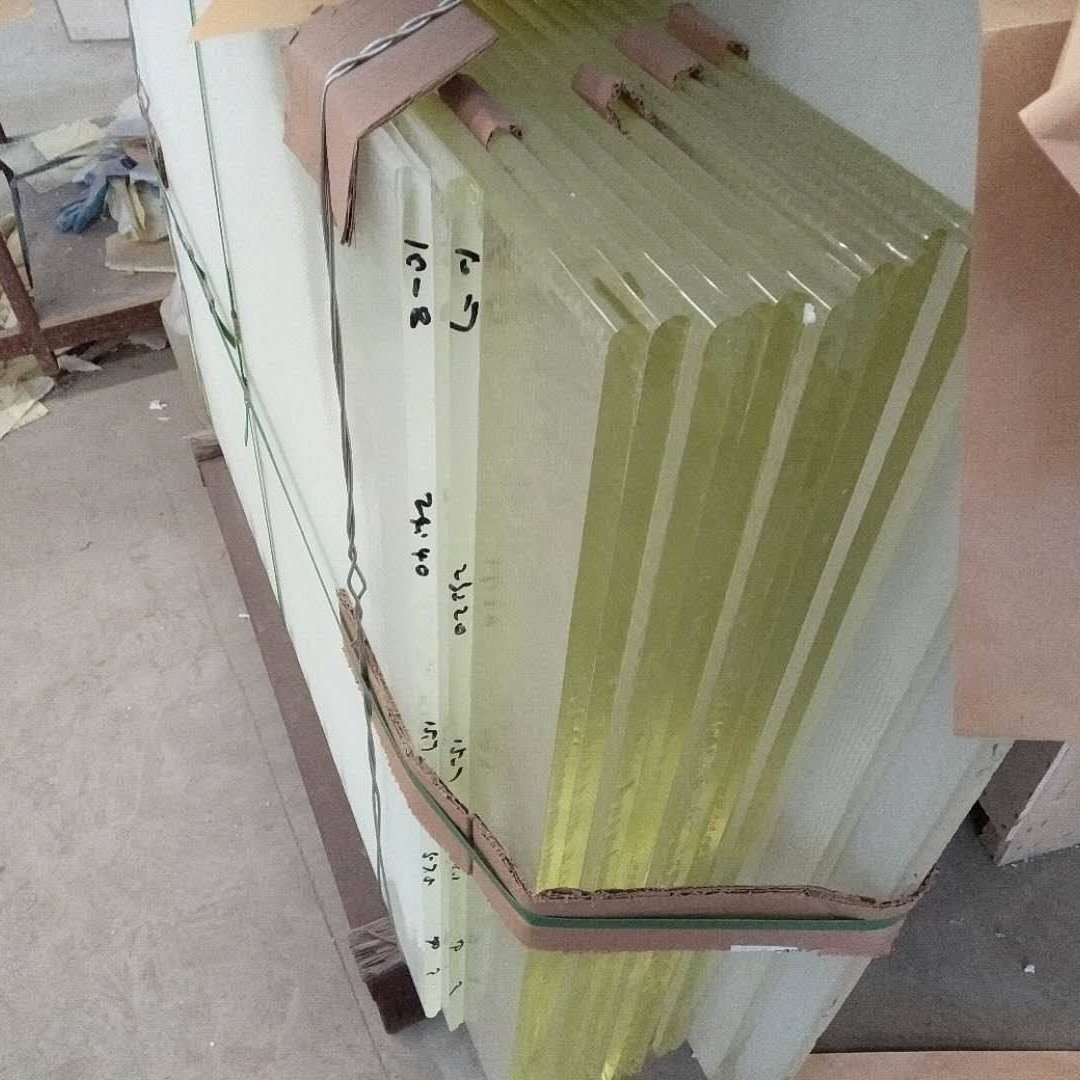

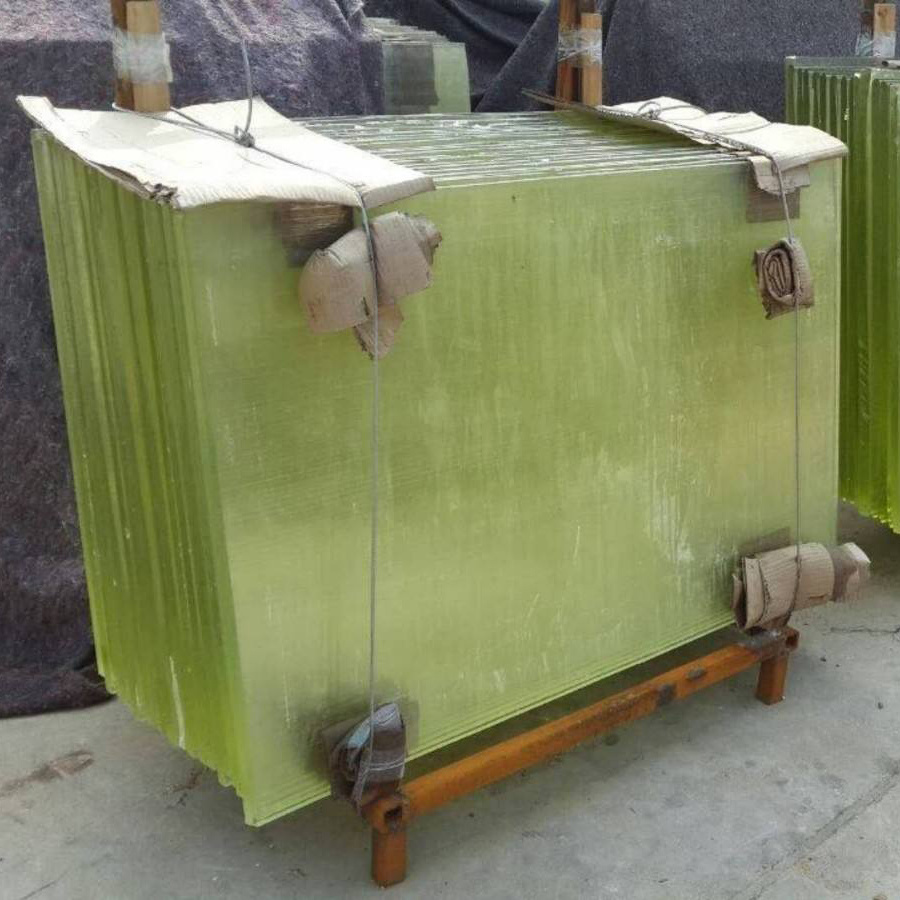

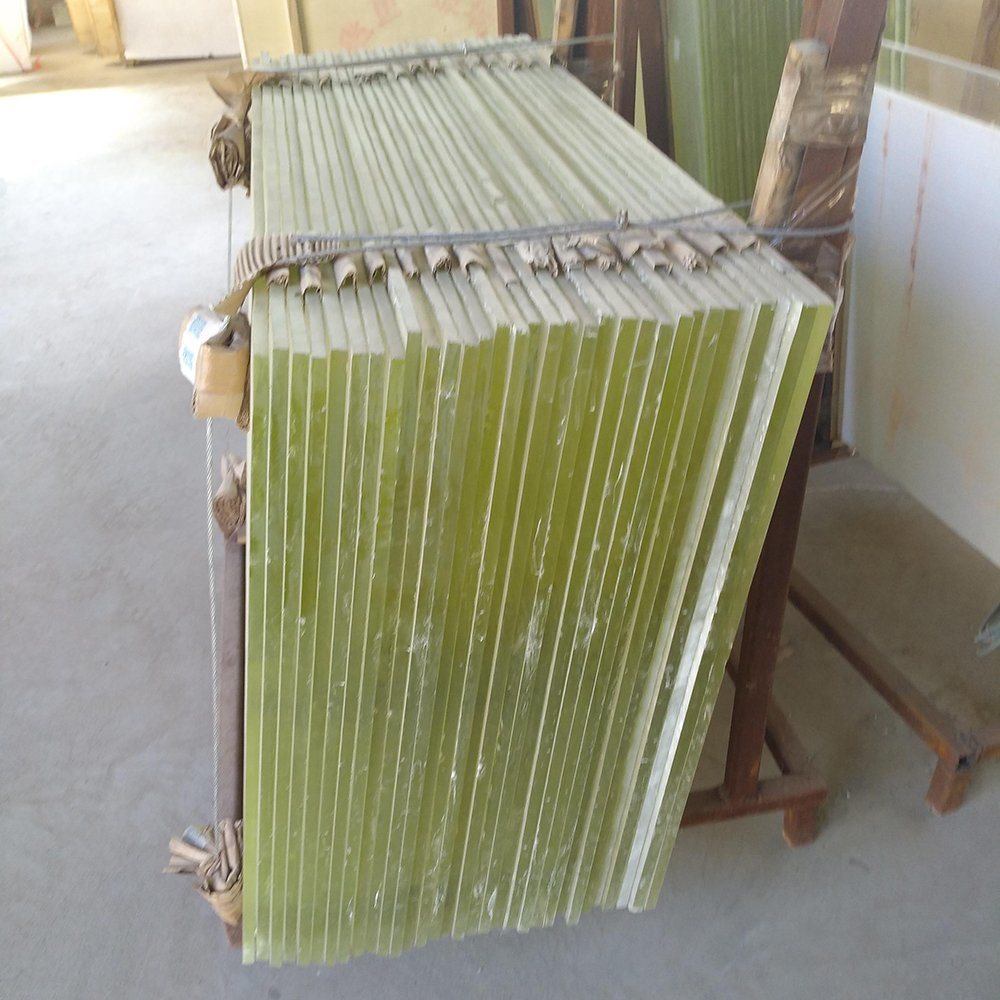

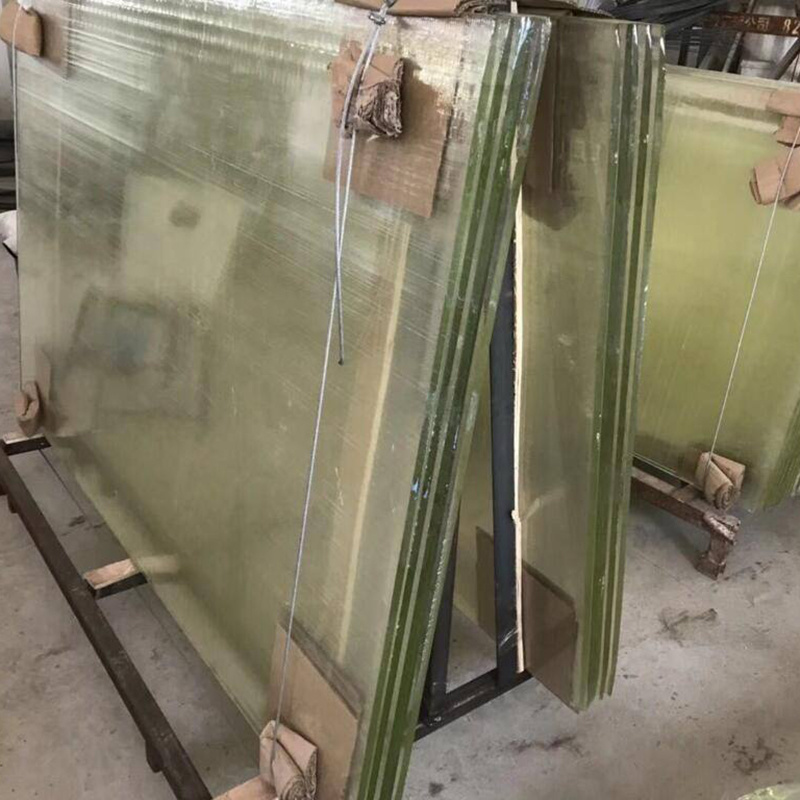

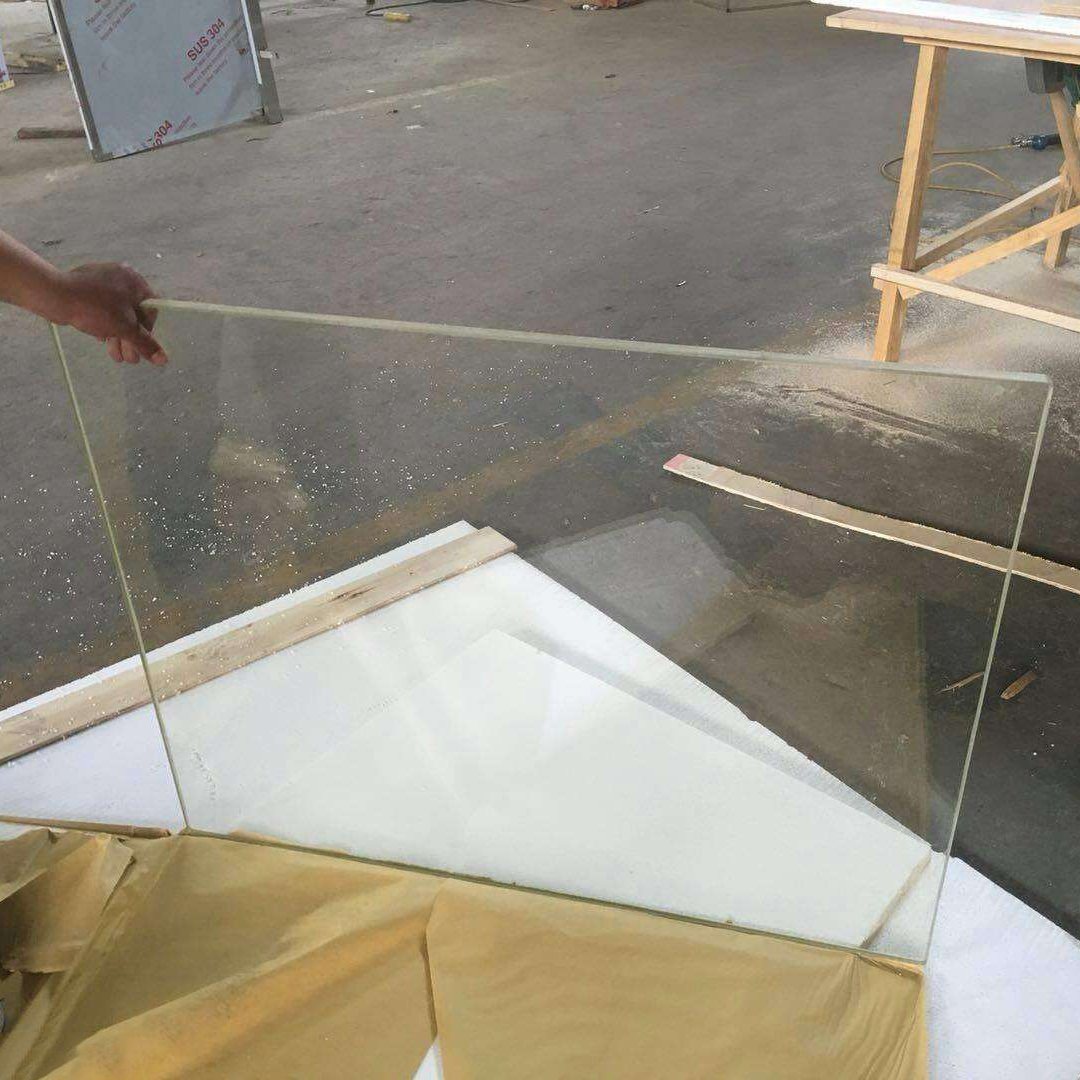

10mm 12mm 15mm 18mm Medical X Ray Radiation Shielding Lead Glass

2022-03-18 / Browse:304

inquiry

Technical inormation:

model	refractiveindex	density	lead equivalent Thickness:1 mm	sio2	pbo	other material	transparency
ZF2	1.67250	4.12g/cm³	0.22 mmpb	39.10%	55.41%	5.49%	90%
ZF3	1.71720	4.46g/cm³	0.24 mmpb	33.88%	61.05%	5.07%	85%
ZF6	1.75500	4.78g/cm³	0.30 mmpb	30.96%	65.06%	3.98%	75%
ZF7	1.0600	5.20g/cm³	0.38 mmpb	27.27%	70.93%	1.8%	70%

Product specifications:

A.Model : ZF2 / ZF3 / ZF6 / ZF7
B.Size of Lead glass

Lead Glass Dimension
L x W	8mm	10mm	12mm	15mm	18mm	20mm	25mm
200 x 300	√	√	√	√	√	√	√
300 x 400	√	√	√	√	√	√	√
400 x 600	√	√	√	√	√	√	√
600 x 800	√	√	√	√	√	√	√
600 x 900	√	√	√	√	√	√	√
1000x800	√	√	√	√	√	√	√
1200x800	√	√	√	√	√	√	√
1200x900	√	√	√	√	√	√	√
1200x1000	√	√	√	√	√	√	√
1200x1200	√	√	√	√	√	√	√
1500x900	√	√	√	√	√	√	√
1500x1000	√	√	√	√	√	√	√
1500x1200	√	√	√	√	√	√	√
1600x1000	√	√	√	√	√	√	√
1600x1200	√	√	√	√	√	√	√
1800x1000	√	√	√	√	√	√	√
1800x1200	√	√	√	√	√	√	√
2000x1000	√	√	√	√	√	√	√
2000x1200	√	√	√	√	√	√	√
2400x1200	×	√	√	√	√	√	√
* Above is standard size , non-standard size can be customized

Above size is always available in our stock , if need other sizes , please contact us freely , we can produce as per your requirement .

Thickness :

8mm / 10mm / 12mm / 13mm /15mm / 17mm / 18mm / 20mm /22mm / 23mm / 24mm / 25mm / 30mm / 40mm / 45mm / 50mm / 60mm / 70mm / 80mm / 90mm / 100mm / 110mm / 120mm / 130mm / 140mm / 160mm / 200mm
