lead glass

2021-08-26 / Browse:841

inquiry

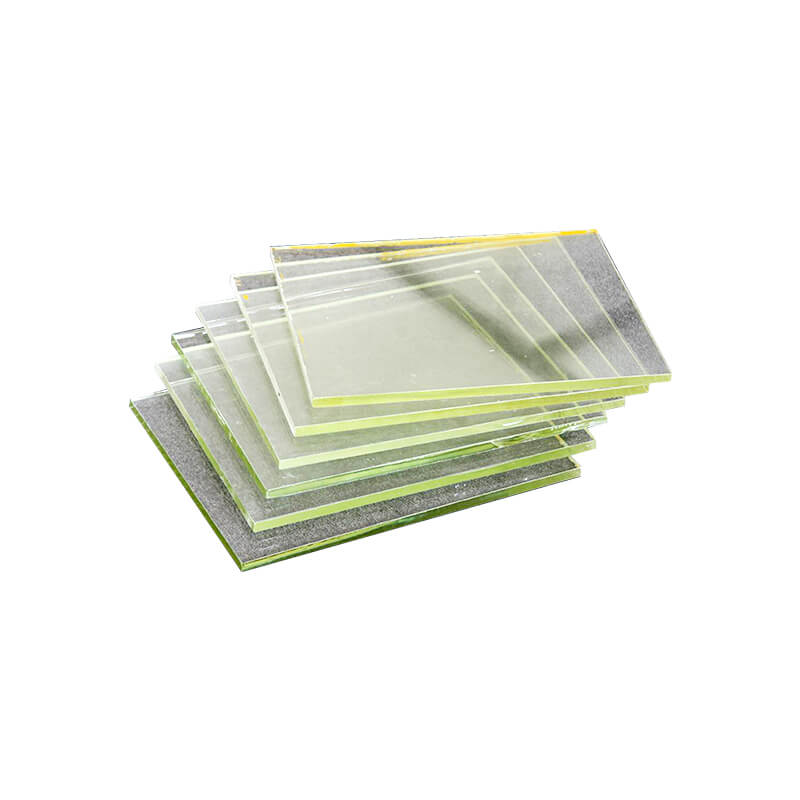

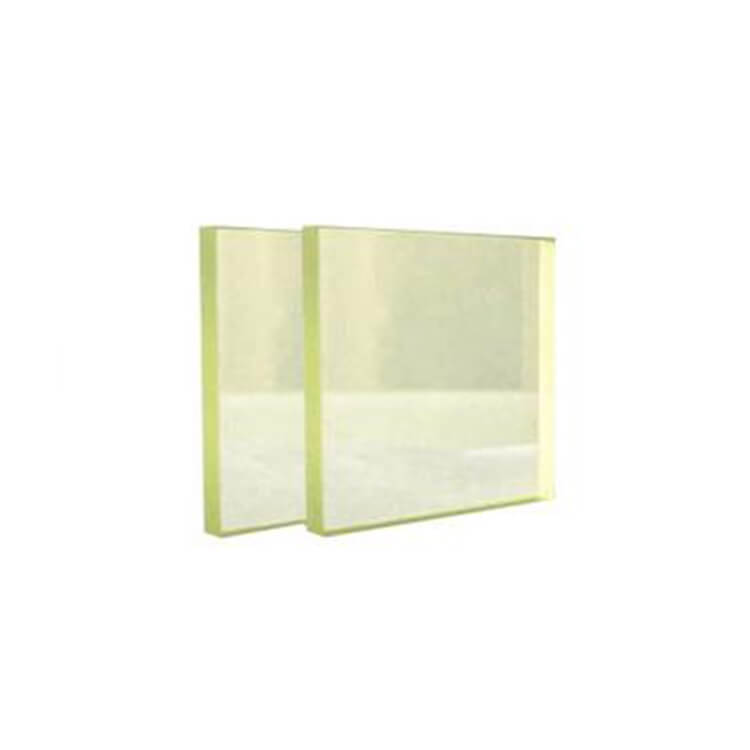

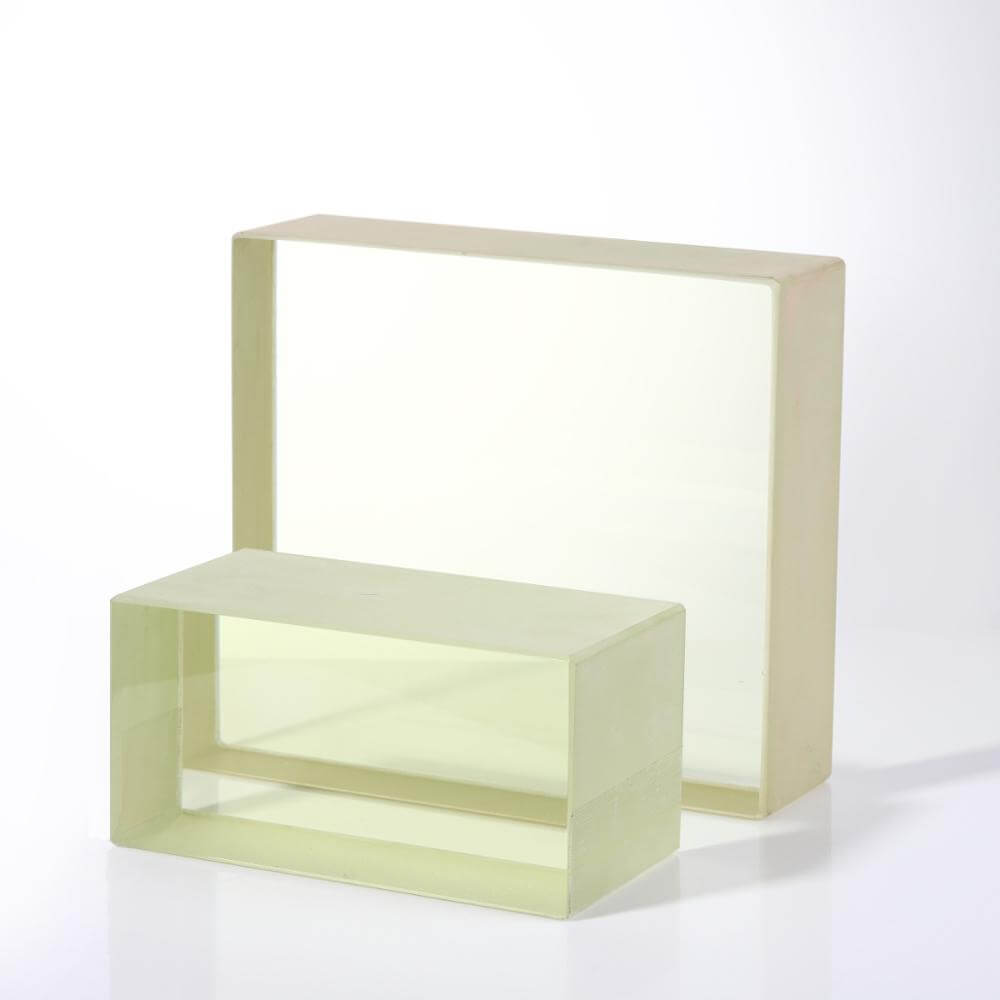

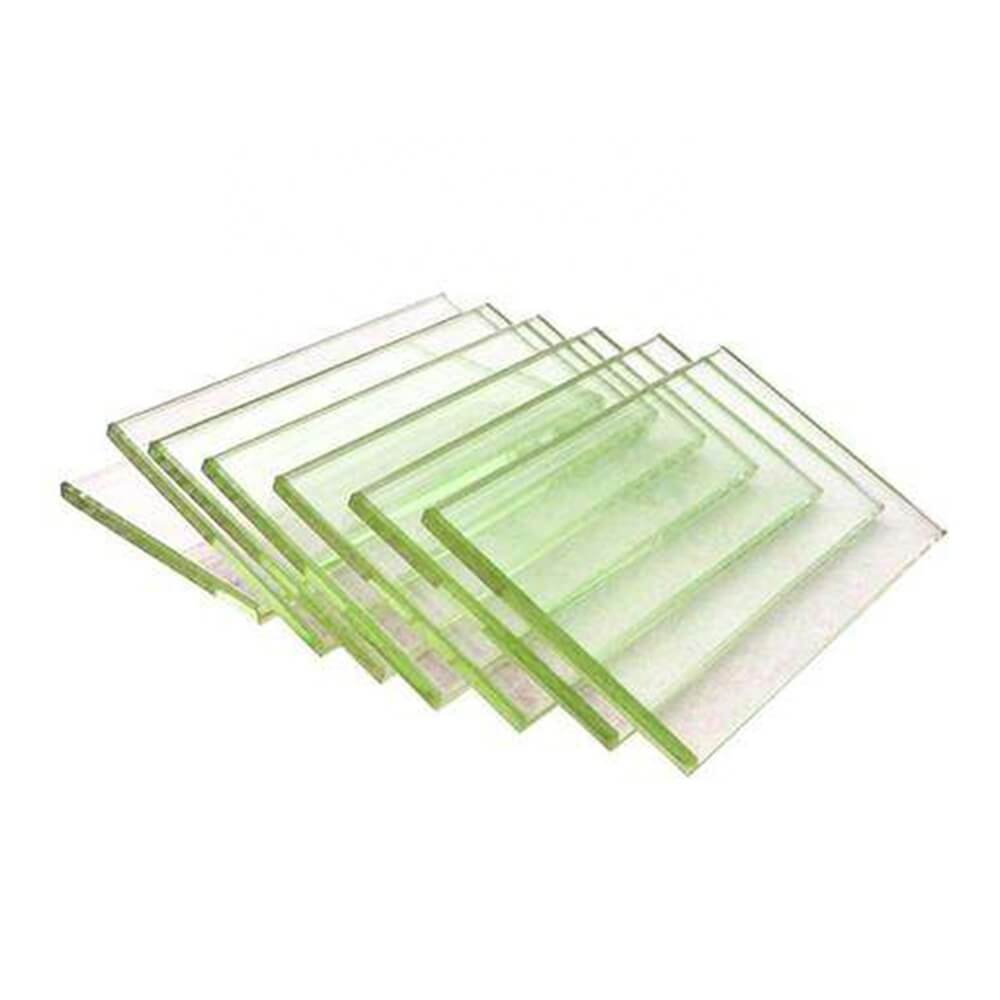

Depending on your requirements, x-ray protective lead glass can be provided at any size ,
and the lead material used in the glass can vary depending on the strength of protection needed.
1) Model : ZF2 / ZF3 / ZF6 / ZF72) Lead Equivalent : 1.5mm pb , 2mm pb , 3mm pb , 4mm pb , 5mm pb , 6mm pb , 7mm pb , 8mm pb , 9mm pb , 10mm pb
3) Thickness : 6mm 7mm , 8mm , 9mm , 10mm , 12mm , 15mm , 18mm , 20mm , 22mm , 23mm , 24mm , 25mm , 27mm , 30mm , 40mm , 50mm 60mm , 80mm , 90mm ,100mm , 120mm , 150mm , 180mm , 200mm , 300mm
4) Size of Lead glass

X-ray Lead Glass Dimension
L x W	8mm	10mm	12mm	15mm	18mm	20mm	25mm
200 x 300	√	√	√	√	√	√	√
300 x 400	√	√	√	√	√	√	√
400 x 600	√	√	√	√	√	√	√
600 x 800	√	√	√	√	√	√	√
600 x 900	√	√	√	√	√	√	√
1000x800	√	√	√	√	√	√	√
1200x800	√	√	√	√	√	√	√
1200x900	√	√	√	√	√	√	√
1200x1000	√	√	√	√	√	√	√
1200x1200	√	√	√	√	√	√	√
1500x900	√	√	√	√	√	√	√
1500x1000	√	√	√	√	√	√	√
1500x1200	√	√	√	√	√	√	√
1600x1000	√	√	√	√	√	√	√
1600x1200	√	√	√	√	√	√	√
1800x1000	√	√	√	√	√	√	√
1800x1200	√	√	√	√	√	√	√
2000x1000	√	√	√	√	√	√	√
2000x1200	√	√	√	√	√	√	√
2400x1200	×	√	√	√	√	√	√
* Above is standard size , non-standard size can be customized

Above size is always available in our stock , if need other sizes , please contact us freely , we can
produce as per your requirement .
Thickness : 7mm / 8mm / 9mm / 10mm / 12mm / 13mm / 14mm /15mm / 16mm / 17mm / 18mm / 20mm /22mm / 23mm / 24mm / 25mm / 30mm / 40mm
/ 45mm / 50mm / 60mm / 70mm / 80mm / 90mm / 100mm / 110mm / 120mm / 130mm / 140mm / 150mm / 160mm / 180mm / 200mm
2. Terms of medical X ray protective lead glass:
Payment: TT
Delivery time: Abt 3 days after your payment
Packing: Foams and wooden case
Shipping: Tianjin Xingang port.
Specification:

Model	Refractive index	Density (G/cm3)	Lead Equivalent	Sio2 (%)	Pb3O4 (%)	Others (%)	Transparency
ZF2	1.6725	4.2	0.21	39.1	55.41	5.49	90%
ZF3	1.7172	4.46	0.24	33.88	61.05	5.07	85%
ZF6	1.755	4.76	0.27	30.96	65.06	3.98	75%
ZF7	1.06	5.2	0.33	27.27	70.93	1.8	70%

Application of lead shielding glass :
Δ X-ray shielding in hospitals
Δ X-ray rooms MRI scanning
Δ observations windows
Δ door glazing
Δ nuclear medicine application
Δ special mitre joint and lamination with float glass allow extended window sizes, creating better observation environments
Δ multiple glazing units providing shaped observation solutions
Disinfection of Radiation Shielding Glass
Δ only use water, a mild detergent and a soft cloth
Δ Lead glass can be disinfected using commercially available disinfectants that has approved. Disinfection using ultraviolet irradiation is also possible
Δ radiation shielding glass should never be exposed to moisture or temperature fluctuations in conjunction with moisture and acidic air
Δ only use a sealant that is free of acids and alkaline substances (e. g. acetic acid, ammonia) during installation. Adhesive
labels can cause discoloration if the adhesive reacts with the glass surface.
