Antiradiation Interlayer Pb X-ray Shielding Lead Plate Sheet

2022-03-18 / Browse:350

inquiry

Product Description
1. lead sheet/plate/coil
2.Standard:ASTM,JIS,DIN,GB

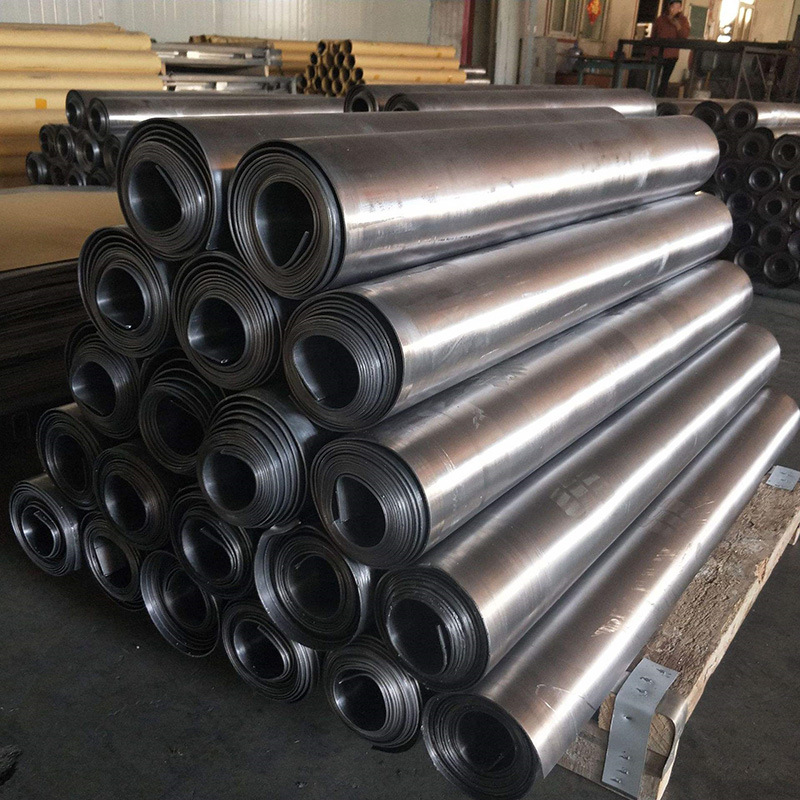

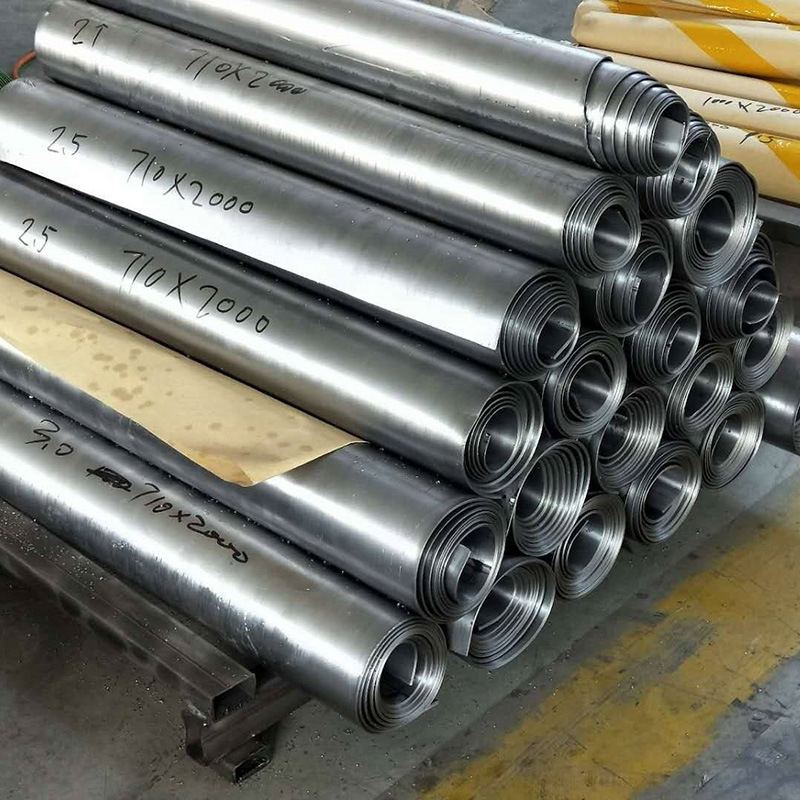

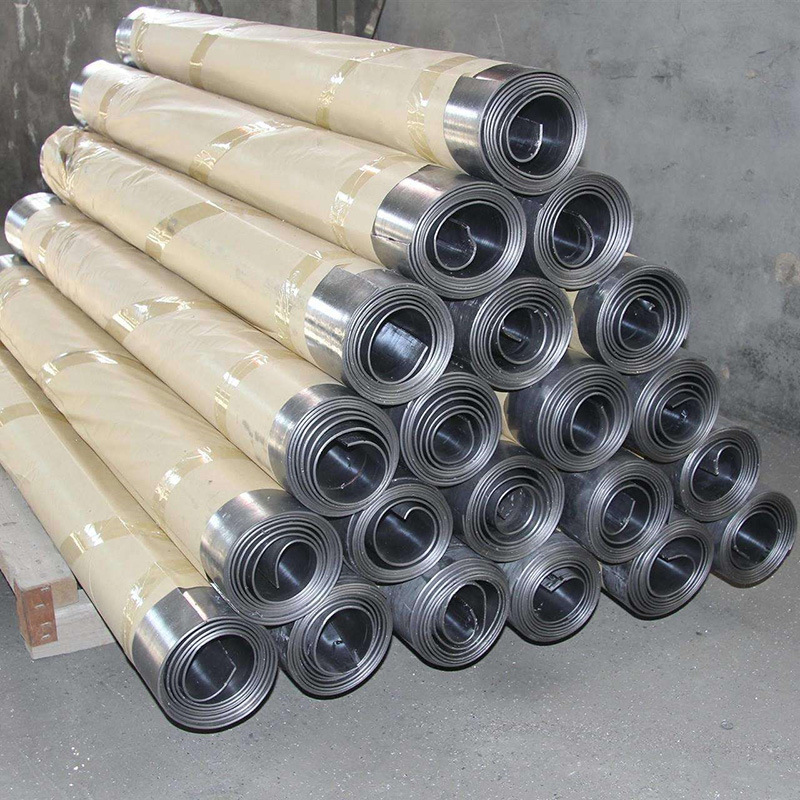

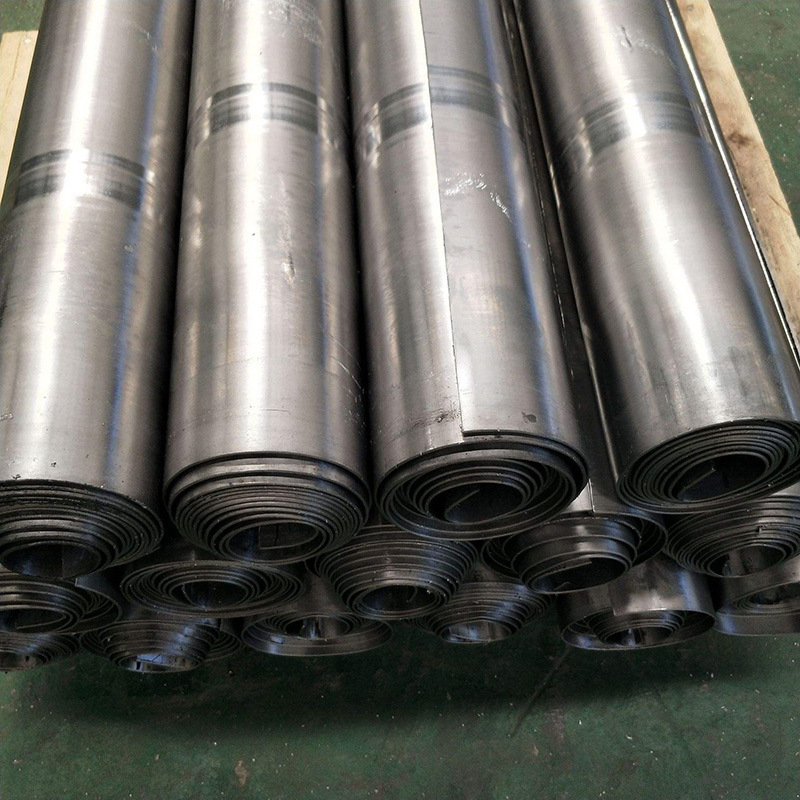

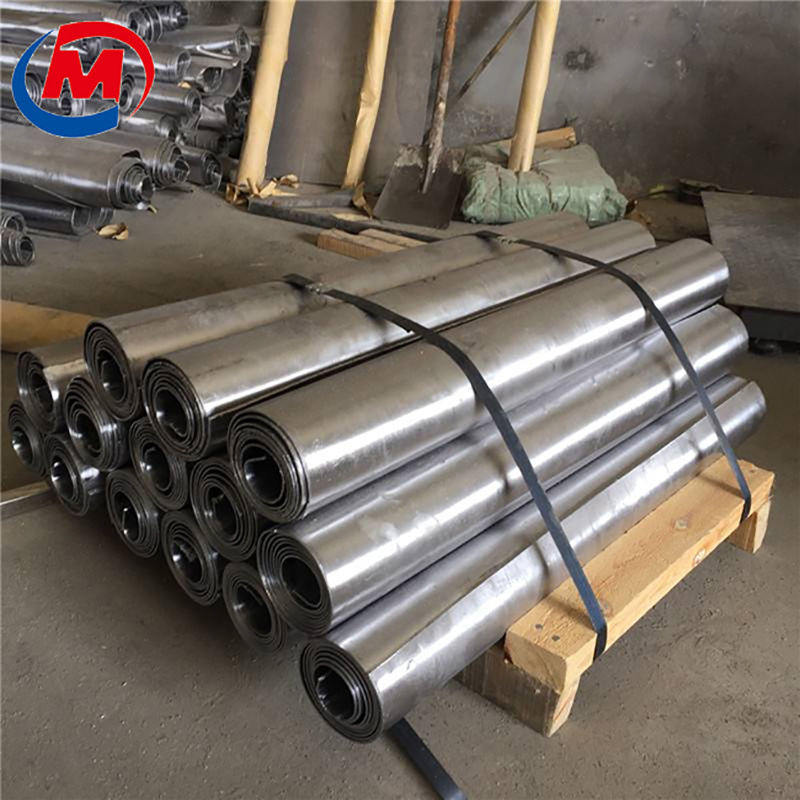

Lead sheet/plate/coil
Thickness	0.5-500mm
Width	1000-2500mm
Length	2000-5000mm
Standard	GB/T1470-2014,GB/T1472-2014,YS/T498-2006,YS/T636-2007,YS/T265-2012
Process	cold rolled;hot rolled

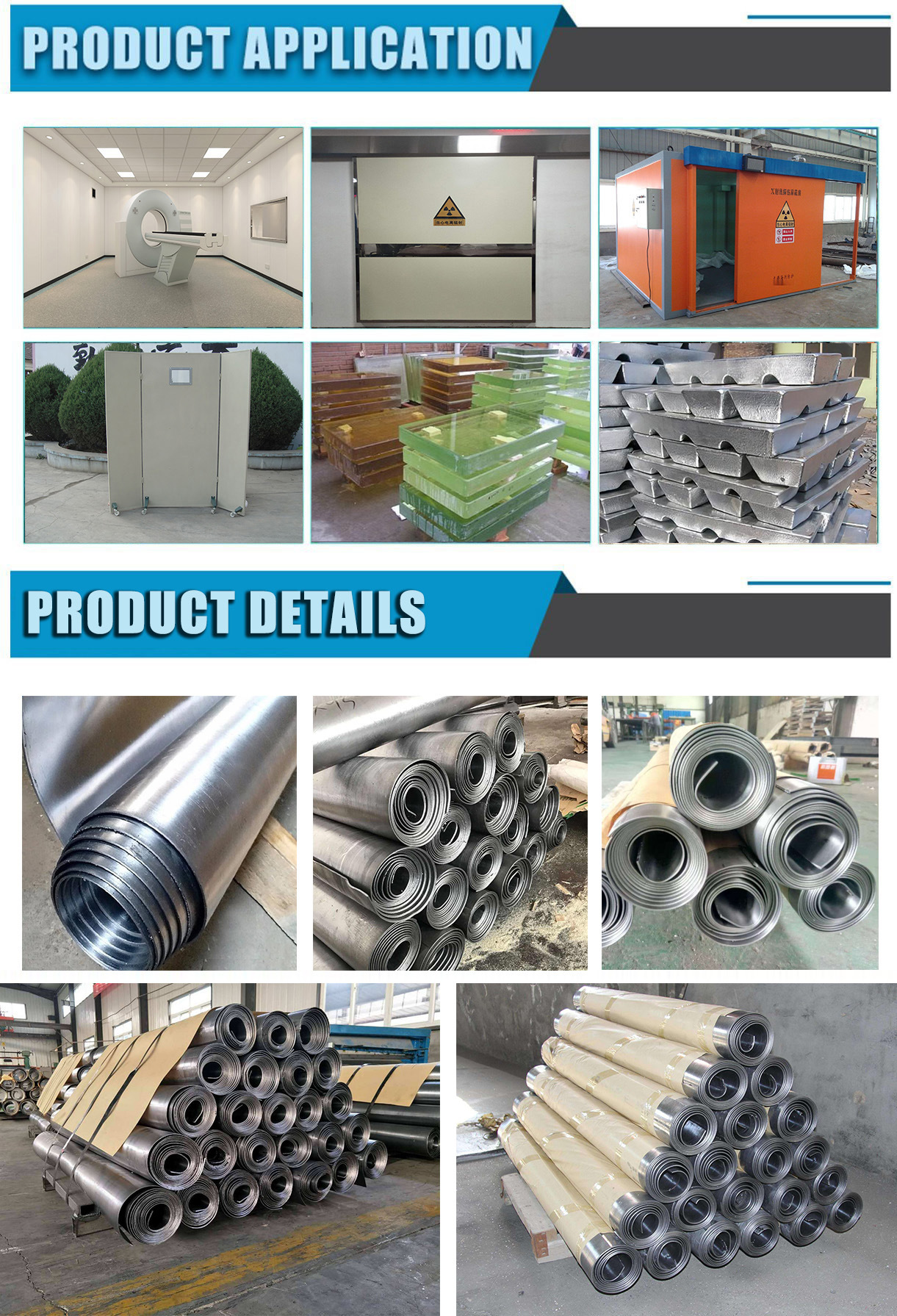

Application	acid-proof environment construction, medical radiation protection, X-ray, CT room radiation protection, aggravation and sound insulation

Product Range
Material Grade we have
1)Pure lead:Pb1,Pb2
2)Pb-Sb Alloy:PbSb0.5,PbSb1,PbSb2,PbSb4,PbSb6,PbSb8,
3)Pb-Ag Alloy:PbAg1

	Pb	Ag	Sb	Cu	As	Sn	Bi	Fe	Zn	Mg+Ca+Na	other
Pb1	99.994	0.0005	0.001	0.001	0.0005	0.001	0.003	0.0005	0.0005		0.006
Pb2	99.9	0.002	0.05	0.01	0.01	0.005	0.03	0.002	0.002		0.1
PbAg1	balance	0.9-1.1	0.004	0.001	0.002	0.002	0.006	0.002	0.001	0.003	0.02
PbSb0.5			0.3-0.8		0.005	0.008	0.06	0.005	0.005		0.15
PbSb1			0.8-1.3		0.005	0.008	0.06	0.005	0.005		0.15
PbSb2			1.5-2.5		0.01	0.008	0.06	0.005	0.005		0.2
PbSb4			3.5-4.5		0.01	0.008	0.06	0.005	0.005		0.2
PbSb6			5.5-6.5		0.015	0.01	0.06	0.01	0.01		0.2
PbSb8			7.5-8.5		0.015	0.01	0.06	0.01	0.01		0.2

Lead plate refers to a plate rolled with metal lead. It has strong anti-corrosion, acid and alkali resistance, and is also a relatively inexpensive radiation protection material in many aspects such as acid-proof environment construction, medical radiation protection, X-ray, CT room radiation protection, aggravation and sound insulation.
It has strong anti-corrosion, acid and alkali resistance, acid-proof environment construction, medical radiation protection, X-ray, CT room radiation protection, aggravation, sound insulation and many other aspects, and it is a relatively inexpensive radiation protection material.
It is mainly used in the manufacture of lead storage batteries. It is used as a lining protection device for lead acid and lead pipes in the acid and metallurgical industries. In the electrical industry, lead is used as a cable sheath and a fuse. Lead-tin alloys containing tin and antimony are used as printed type, lead-tin alloys are used to make fusible lead electrodes, and lead plates and lead-plated steel sheets are used in the construction industry. Lead is well absorbed by X-rays and gamma rays and is widely used as a protective material for X-ray machines and atomic energy devices. Lead in some areas has been or will soon be replaced by other materials due to lead poisoning and economic reasons.
