Best Price Custom Aluminium Pipes 1050 1060 20mm 30mm 100mm

2021-08-26 / Browse:618

inquiry

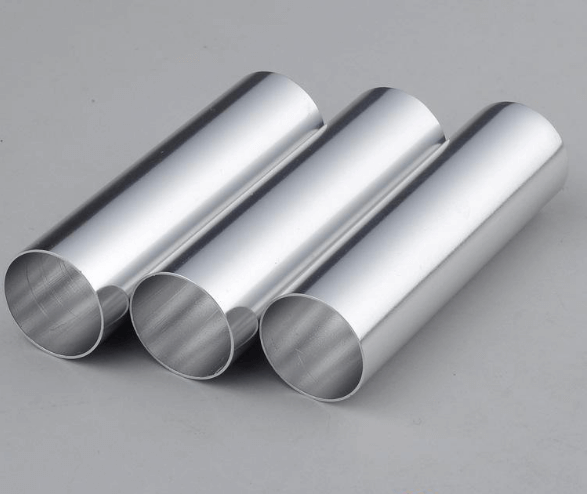

Thin wall 1060 round aluminium tube

Standard
GB/T 3190-2008 JIS H4040:2006  JIS H4001:2006  ASTM B221M:2006 ASTM B209M:2006 ISO 209:2007(E)  EN      573-3:2003 etc
Material
1000Series:1050/1060/1100/1145/1199/1350
2000Series:2011/2014/2017/2024/2036/2048/2124/2218/2219/2A02/2A06/2A10/2A11/2A12/2A14/2A16/2A17/2A50/2A60
3000Series:3003/3004/3105/3A21
5000Series:5005/5050/5052/5056/5083/5086/5154/5182/5252/5254/5356/5454/5456/5457/5652/5657/5A02
6000Series:6005/6009/6010/6061/6063/6066/6070/6101/6151/6201/6205
7000Series:7005/7039/7049/7050/7072/7075/7175/7178/7475/7A04

Synopsis
Technology	Aluminum Extrusion
Surface treatment	Mill finish,silver anodizing, black anodizing,powder coating, polishing,wood grain, electrophoresis,sandblasting,Blush, etc
Color	Silver,red,blue,yellow or customized
Normal power coating thickness	60-100 micro
Surface	Drawing, polishing, anodizing, coating,etc
Deep processing	Cutting, drilling, punching, bending etc

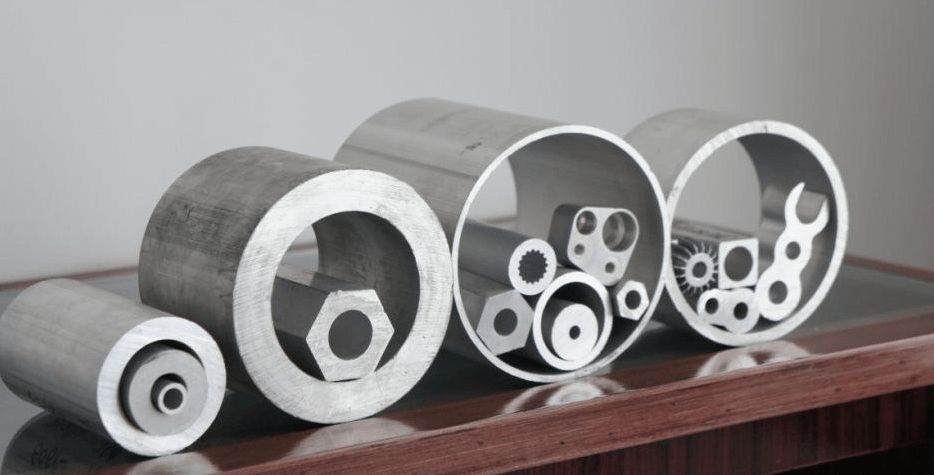

Shape	Square tube, round tube, floral tube, shaped tube, annular aluminum tube
Performance	Corrosion resistance,light weight
Package	Standard export package,or as required
Quality control	ISO approved/inspection at site/inspection before shipping/testing machine

Chemical composition
Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Impurity
6061	0.4-0.8	0.70	0.15-0.40	0.15	0.8-1.2	0.04-0.35	0.25	0.15	0.15
6063	0.2-0.6	0.35	0.1	0.1	0.45-0.9	0.1	0.1	0.1	0.15
6082	0.7-1.3	0.5	0.1	0.4-1.0	0.6-1.2	0.25	0.2	0.1	0.15
7050	0.12	0.15	2.0-2.6	0.1	1.9-2.6	0.04	5.7-6.7	0.06	0.15
7075	0.4	0.5	1.2-2.0	0.3	2.1-2.9	0.18-0.28	5.1-6.1	0.2	0.15
Remaining elements are all Al
